Máquina embotelladora de agua a pequeña escala | Línea de llenado CGF8-8-3

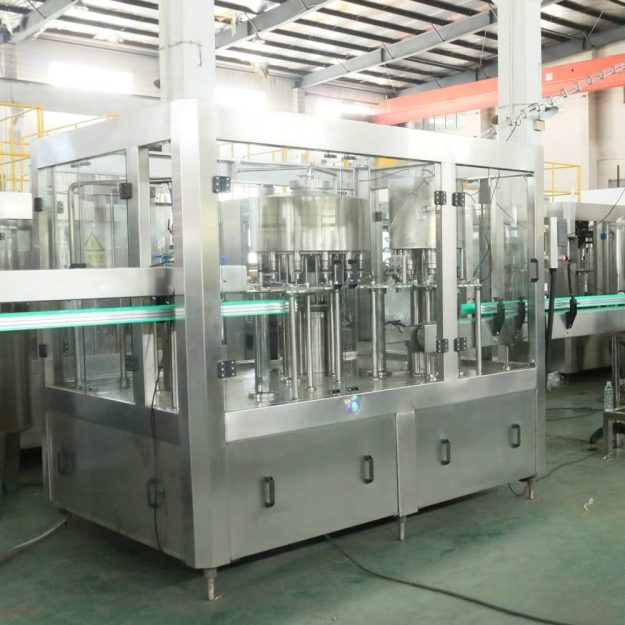

A small scale water bottling machine is a compact and automated system designed for rinsing, filling, and capping bottled water, ideal for small production capacities ranging from 1,000 to 3,000 bottles per hour. Models like the CGF8-8-3 are perfect for startups, rural water projects, and niche brands needing high hygiene and efficiency in a limited space.
Especificaciones
| Modelo | CGF883 | CGF14125 | CGF18186 | CGF24248 | CGF323210 | CGF404010 |
| Jefes de lavado, llenado y sellado | 8-8-3 | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 |
| Capacidad de producción (botellas/hora) | 1000-2000 | 3000-5000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
| Diámetro adecuado de la botella (mm) | φ = 50-100 H = 170 330-1500 ml | |||||
| Presión de pulverización | 2~3 | |||||
| Potencia del motor | Principal motor de 4,1 kW |
Principal motor de 4,23 kW |
Motor principal 5,03 kW | Motor principal 6,57 kW | Motor principal 7,5 kW | Motor principal 8,63 kW |
| Potencia de la bomba de vacío externa | 0.7 | 0.7 | 1.1 | 1.5 | 2.2 | 2.2 |
| Dimensiones totales (L x An x Al) | 2100 x 1400 x 2500 | 2100 x 1400 x 2500 | 2460 x 1720 x 2650 | 3100 x 2100 x 2650 | 3500 x 2500 x 2650 | 4600 x 1800 x 2650 |
| Peso | 2300 | 2500 | 3500 | 4200 | 5500 | 6800 |
Vídeo
Descripción

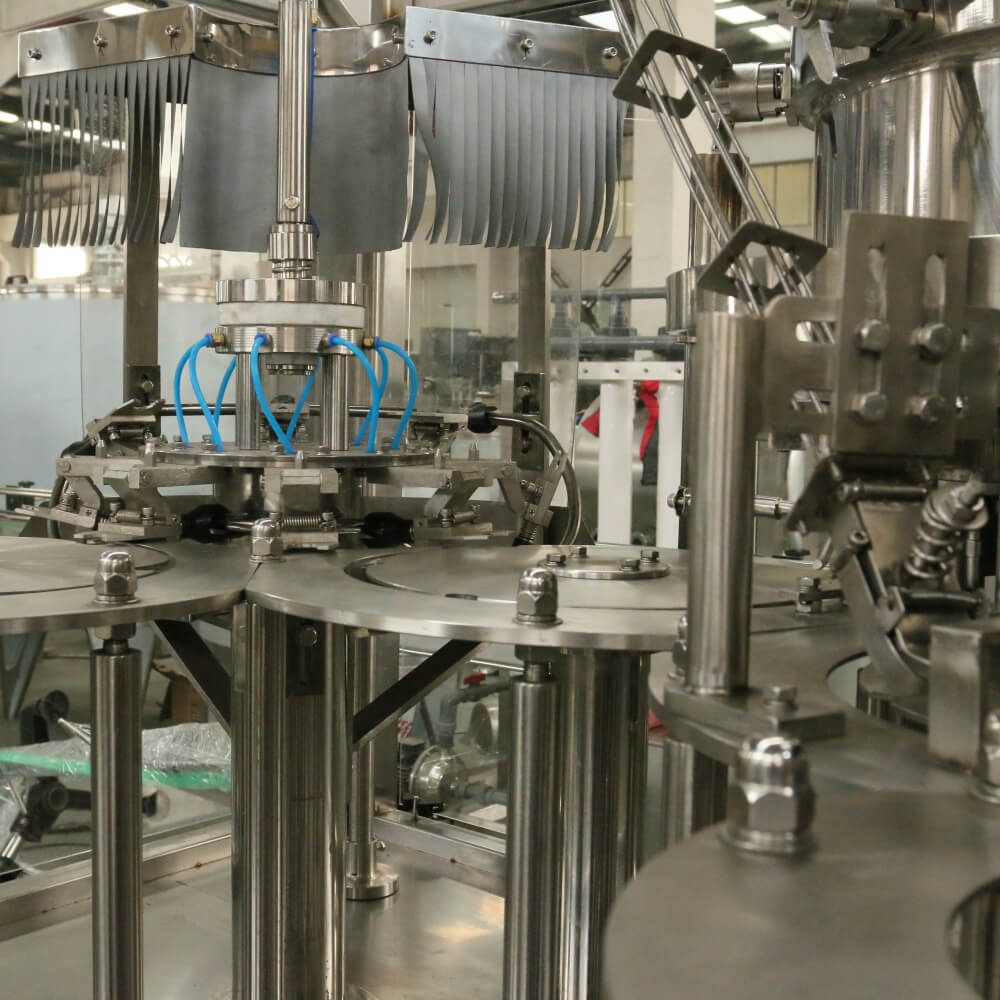

1. Bottle Rinsing Station (8 Heads)
Function: Inverts and sprays sterilized water inside bottles to remove dust and contaminants.
Highlights:
-
304 Stainless Steel Nozzles with anti-drip design
-
Gripper arms customized for PET bottle necks (no need to change for size)
-
Recycled rinse water return line to save water

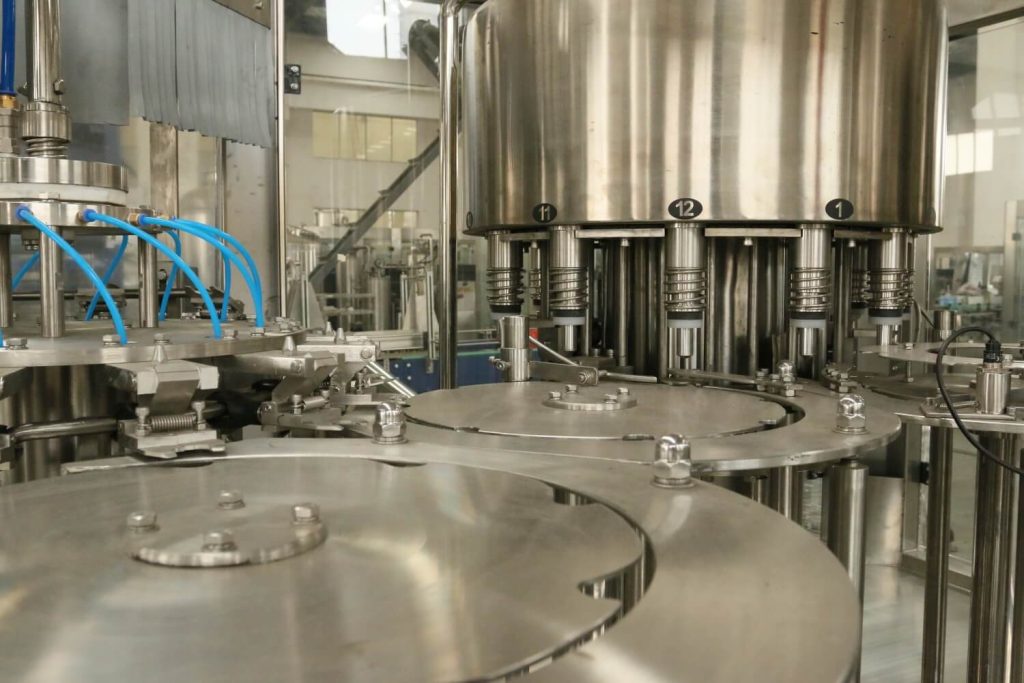

Gravity Filling Station (8 Heads)
Function: Uses gravity to fill still water into bottles with high accuracy and hygiene.
Highlights:
-
Open-type gravity filler (non-pressurized), ideal for purified/spring water
-
Level-controlled valve system ensures uniform fill height
-
Internal CIP (Clean-in-Place) spray balls for automated cleaning
3. Capping Station (3 Heads)
Function: Automatically places and tightens caps using magnetic torque heads.
Highlights:
-
Magnetic clutch torque system for adjustable tightness
-
No bottle–no cap mechanism prevents misplacement
-
Cap hopper + sorter + chute integrated for auto feeding
