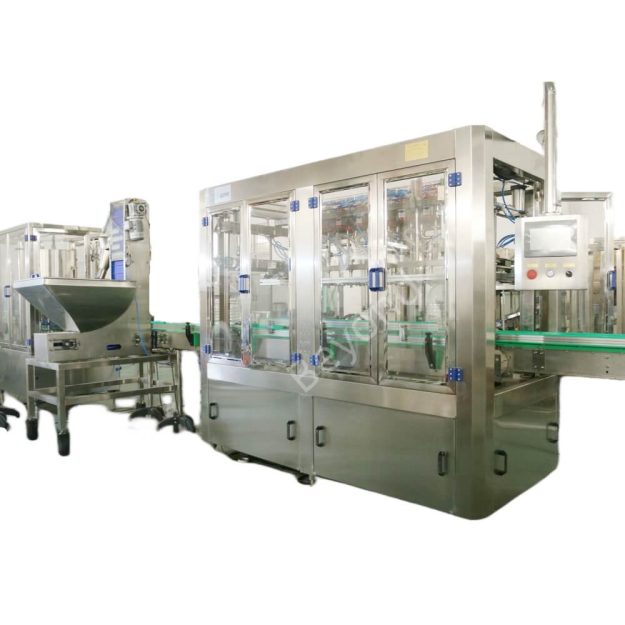

Máquina llenadora de celdas de carga de aceite
Enhance your liquid oil packaging line with our Máquina llenadora de celdas de carga de aceite, engineered for unmatched accuracy and reliability. This advanced solution integrates weight-based filling y automatic capping, ideal for edible oil, lubricants, and viscous liquids.
Especificaciones
| Filling heads | 12 |
| Applicable size | Customized |
| Velocidad de llenado | 20KG: ≤1000BPH |
| Filling accuracy | 20KG: ±20g |
| Dimensión total | 5600*1700*2300
(length * width * height) |
| Potencia del motor principal | 2KW; 220/380 V;50/60 HZ |
| Main engine weight | about 800kg |
| Fuente de aire | 0,6-0,8 MPa |
Vídeo
Descripción

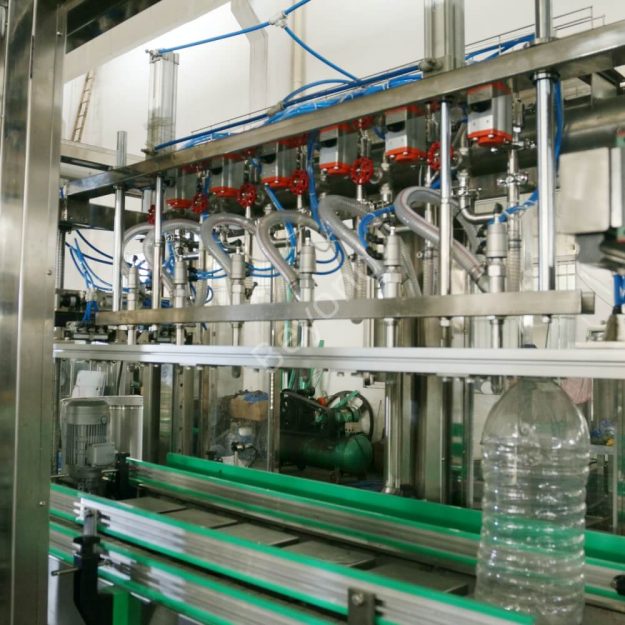

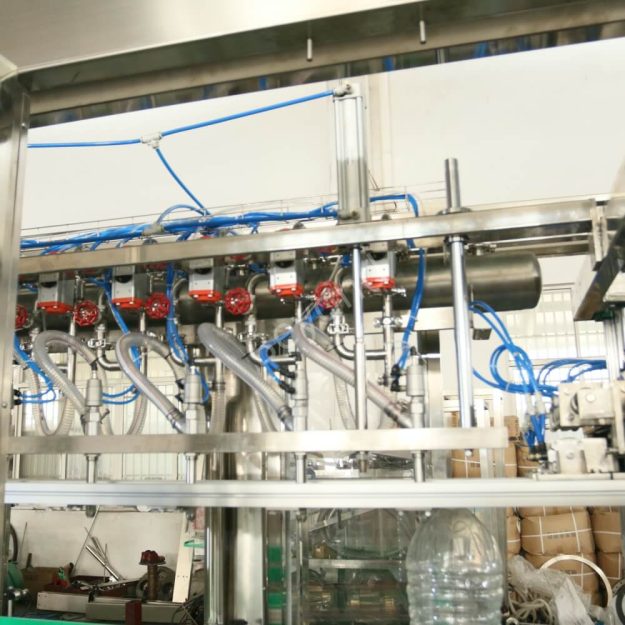

Our filling system leverages high-sensitivity load cells to ensure each container receives the exact quantity of liquid, minimizing product waste and enhancing filling accuracy.
Características principales:
-
Load cell-based real-time weight control
-
Filling accuracy: ±0.2%
-
Suitable for 0.5L to 20L containers
-
Adjustable nozzles for different bottle neck sizes
-
Anti-drip and anti-foam mechanisms

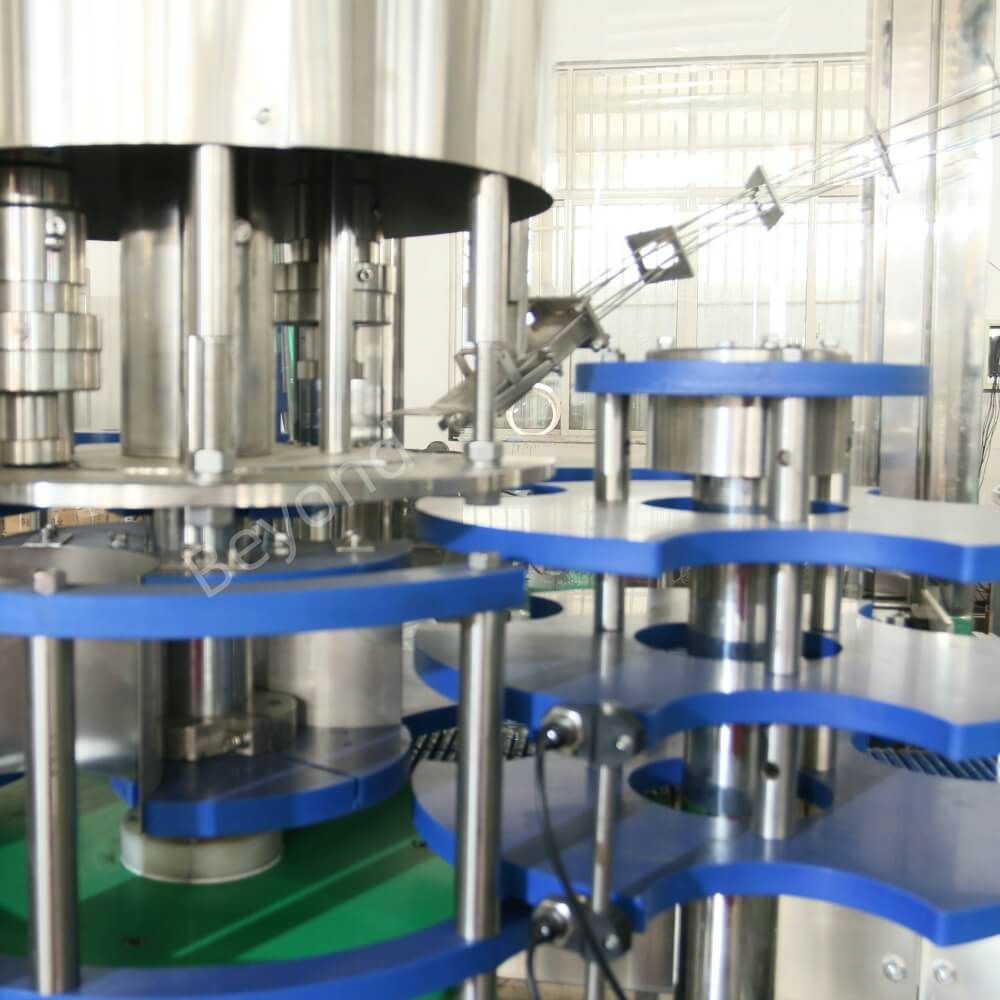

After precise filling, the bottles are automatically transferred to the capping station, which applies consistent torque for leak-proof and durable sealing.
Capping Highlights:
-
Automatic cap sorting and feeding system
-
Compatible with screw caps, press caps, and flip-tops
-
Torque control system for uniform sealing
-
304 stainless steel capping head for hygiene and durability
