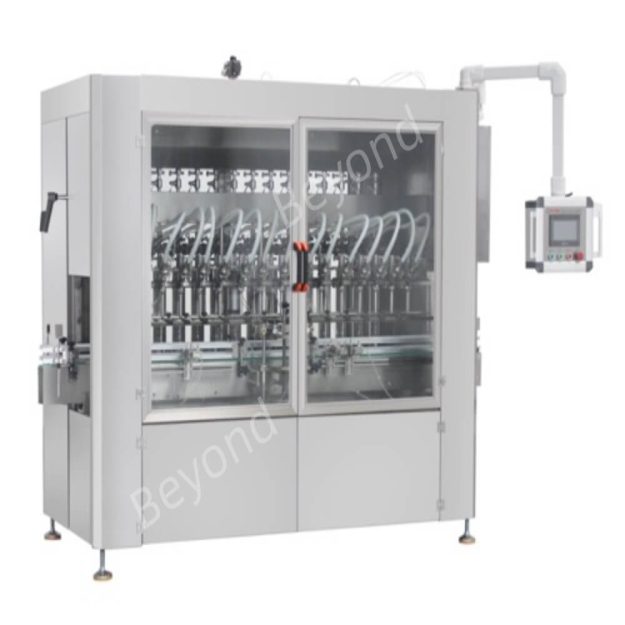

Máquina llenadora lineal de aceite para motores
A Máquina llenadora lineal de aceite para motores is an automatic bottling system that uses piston or flowmeter technology to accurately fill lubricant oils like engine oil into containers. It’s widely used in the automotive and industrial sectors for clean, efficient, and high-speed packaging.
Especificaciones
| Filling heads | 8 |
| Filling range | 500-5000 ml |
| Velocidad de llenado | 1 liter: ≤3000 bottles per hour |
| Filling accuracy | ≤0.2-0.3% |
| Dimensión total | 2600*1500*2200 (length*width*height) |
| Potencia del motor principal | 3KW; 220/380V; 50/60HZ |
| Main engine weight | about 1300kg |
| Fuente de aire | 0,6-0,8 MPa |
Vídeo
Descripción

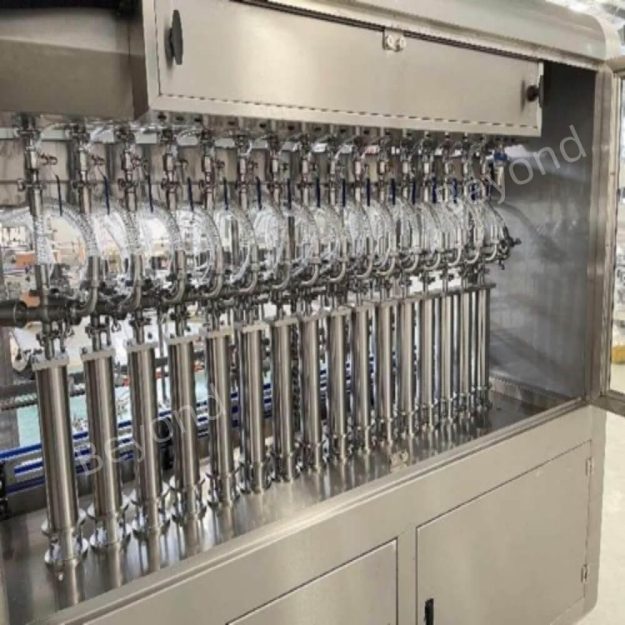

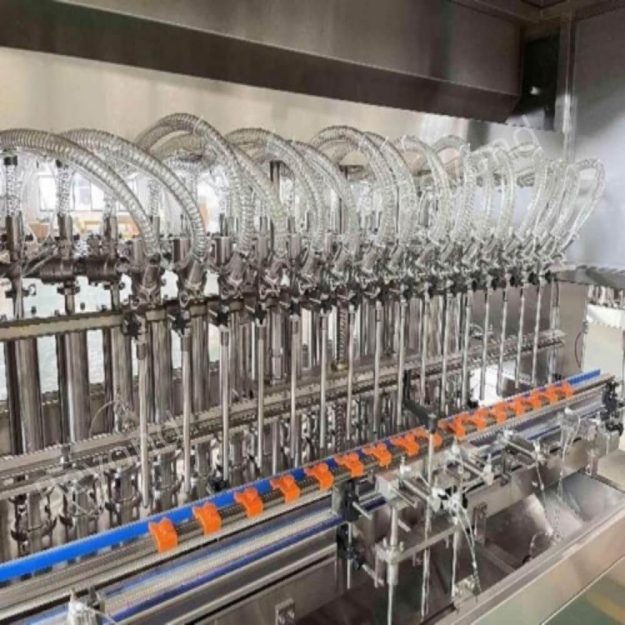

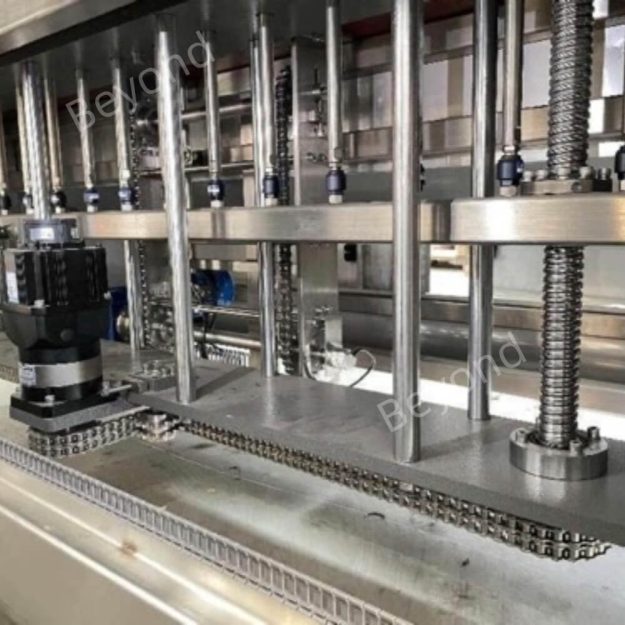

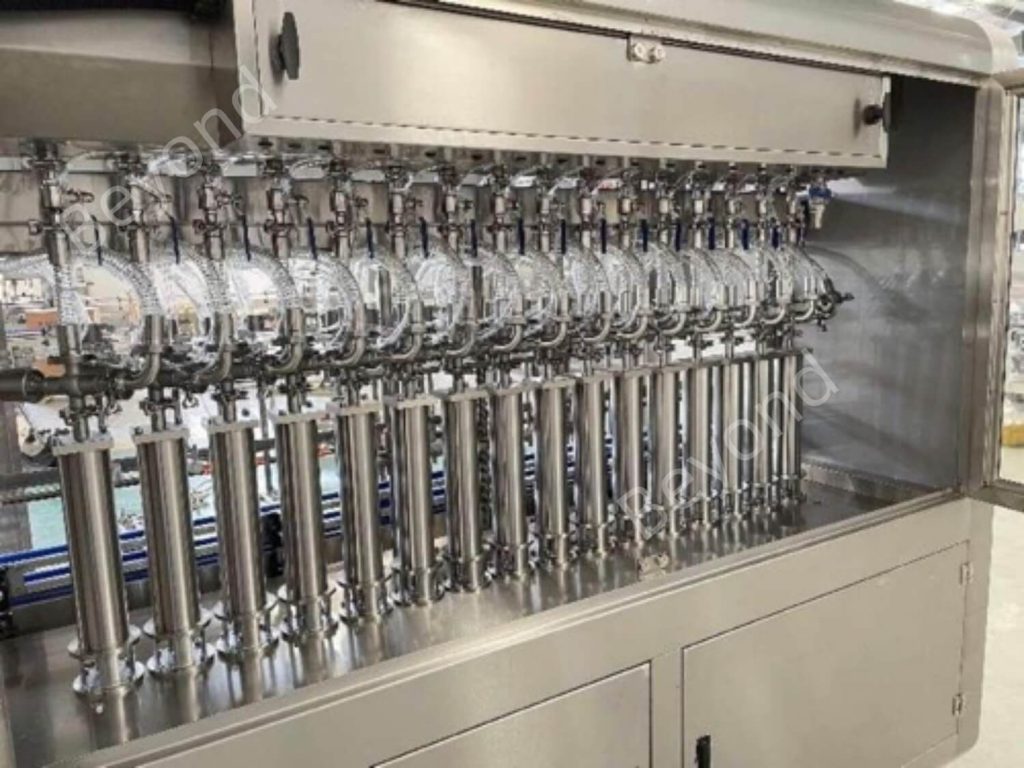

The filling section uses servo piston o flowmeter technology, depending on oil viscosity. It’s ideal for engine oil, gear oil, and other lubricants. Equipped with boquillas antigoteo and optional bottom-up filling, it ensures clean, foam-free operation.
All contact parts are made of 304/316L stainless steel, suitable for a wide range of oils. It handles bottles from 100ml to 5L and works with PET, HDPE, glass, and aluminum containers. The PLC + touch screen system allows for real-time volume adjustments, recipe storage, and monitoring.
Optional upgrades include heated tanks for thick oils, nitrogen flushing, y automatic bottle positioning. Filling speed ranges from 800 to 4000 bottles per hour, depending on setup.
